Horizon Manual Drive 350


The Horizon Manual Drive 350 is a glass lifter designed for in shop use to assist glass workers to unload,
rotate, transport and lay large plates of glass flat onto a cutting table or tempering line.

It has a lifting capacity of 350 Kg’s (770 Lbs). It can rotate glass measuring upto 4400 mm (180″). The Horizon Manual Drive 350 has a 12 volt battery powered vacuum pump and 2 hydraulic rams.

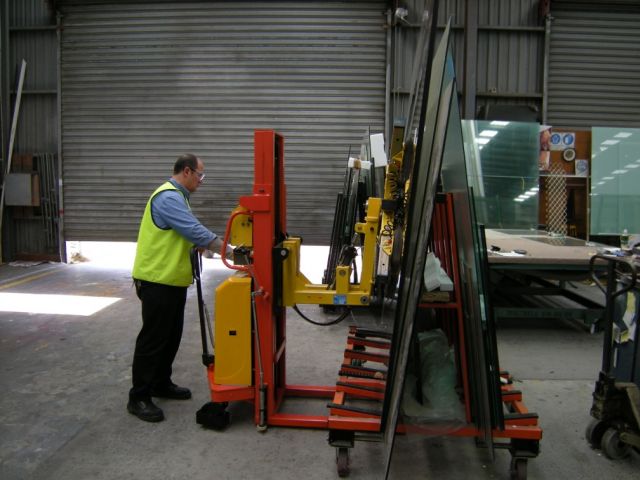

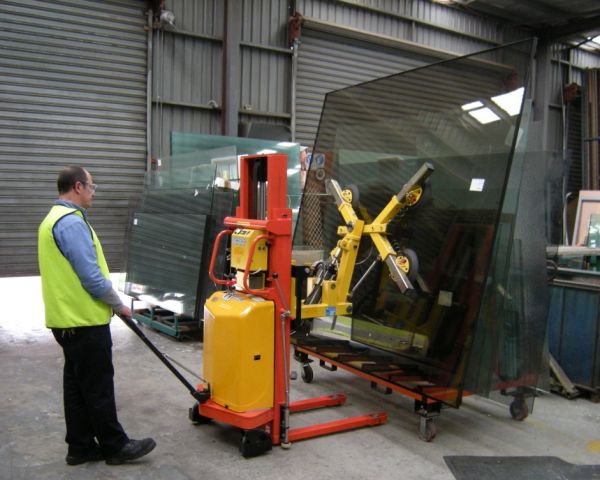

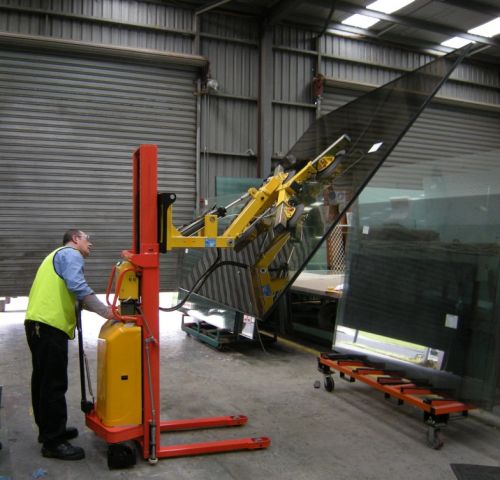

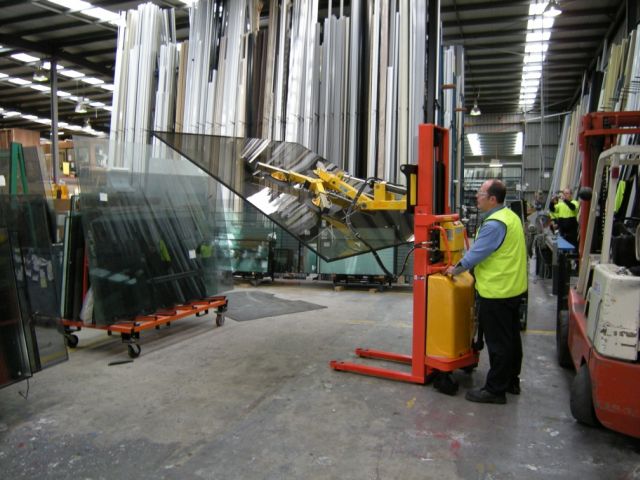

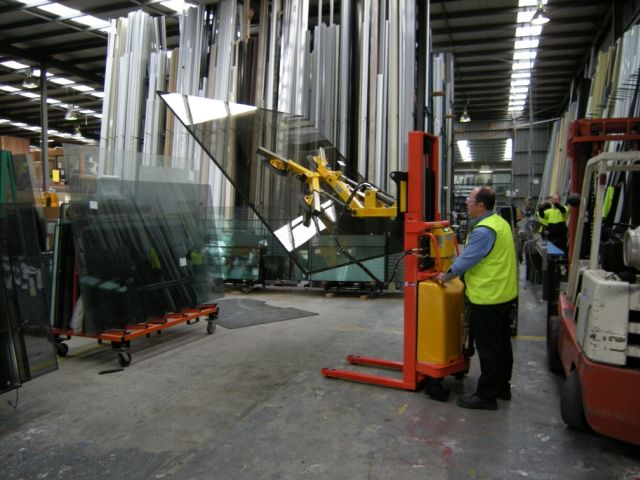

Quattrolifts have released a new glass lifting machine called the Horizon Manual Drive 350 that will lift and tilt glass to the horizontal. The Horizon Manual Drive 350 will allow one operator to lift glass or an IGU from a rack or truck and then index the glass to the horizontal and then slowly and precisely lower it onto a table or into a frame.



The Horizon Manual Drive 350 will allow one or two people to do what use to require four to six people in the past with greater safety. This is perfect for setting DGU’s into a window frame to create a perfect seal.

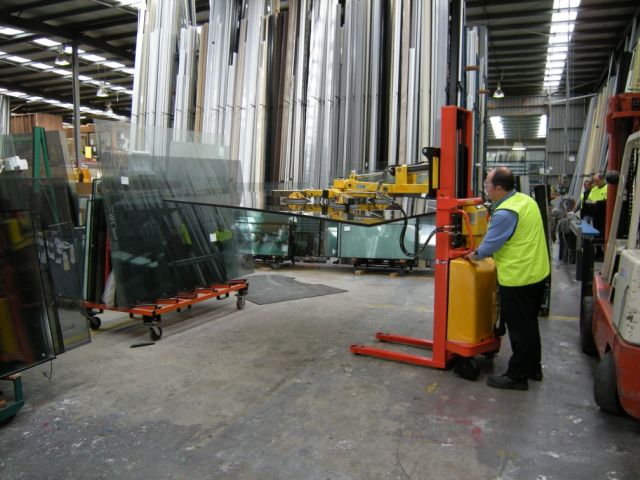

The Horizon Manual Drive 350 can lift 3660 x 2440 mm (144″ x 96″) stock sheets of glass and transport them around your factory with ease. The Horizon Manual Drive 350 also allows the operator to rotate the glass 360 degrees and index to almost 90 degrees which is ideal for edgework machines.

The Horizon Manual Drive 350 can be fitted with a dual vacuum system, adding an extra layer of safety.
